USB C HUB Dual 4K HDMI Type C HUB RJ45 USB 3.0 PD Max 100W Adapter For Macbook Air Pro iPad Pro PC Accessories USB 3.0 HUB
USB 3.1 Type C Compatibility
USB-C is a new standard with much versatility, not all USB-C devices support all of the latest USB-C protocol（like displayport Alternate mode video output）. So, please be sure that features of the device such as Power Delivery & Alternate Mode must be supported by your host laptop system to function, otherwise,the HDMI/VGA interfaces will not work properly; As such, this docking station is not compatible with legacy USB 3.0/”USB A” system
You should make sure that advanced features of the DS-P03S such as host-charging and “Alt Mode” video output must be supported by host laptop system to function. As such, this docking station is not compatible with legacy USB 3.0/”USB A” systems. Not recommended for gaming; HDCP supported.
Please refer to the icon picture of the USB C interface protocol of the laptop below. Different icons correspond to different protocols(means function).Only laptops with USB C ports that are the same as the NO.4 and NO.3 protocol and icon can be connected to this device(USB C docking station or Hub).
Features:

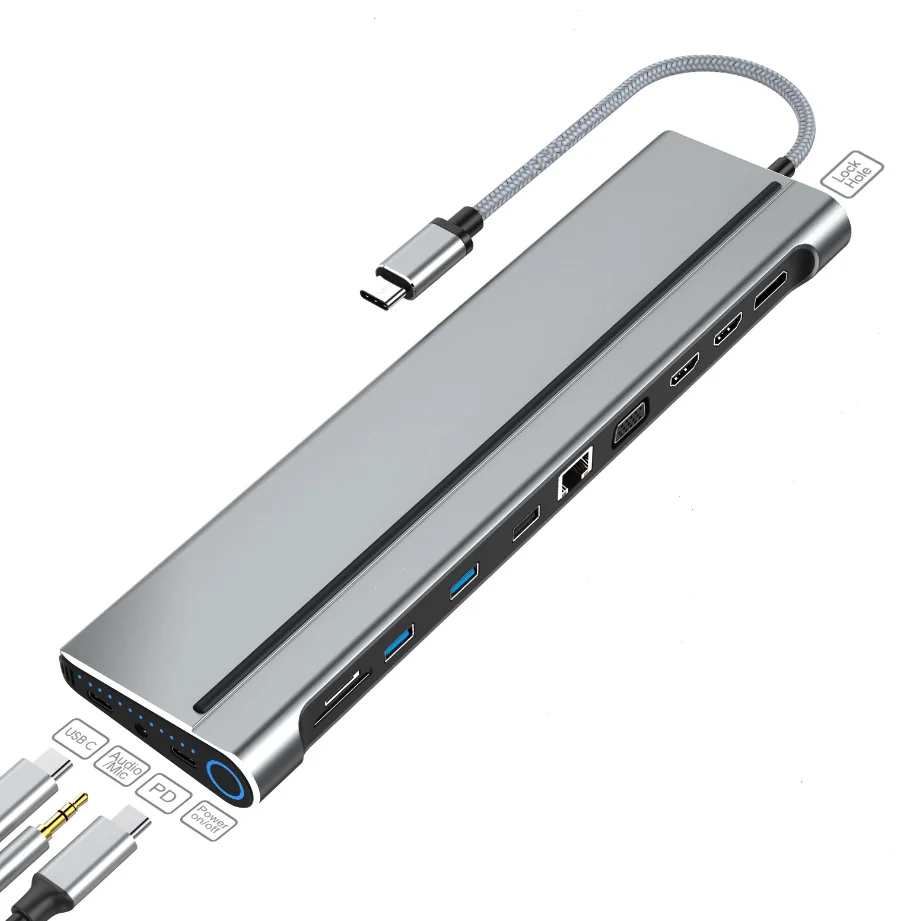

1. USB C Hub(14-in-1): Equipped with 2 USB-C port, 2 USB-A data ports, 2 HDMI ports, 1 DP and 1 Ethernet port, and a microSD/SD card reader, giving you an incredible range of functions—all from a single USB-C port.
2. Dual HDMI Display: Stream or mirror content to a single device in stunning 4K@30Hz, or hook up two displays to both HDMI ports in 4K@30Hz.
3. Widely compatible multifunctional USB C docking station: suitable for Macbook / Macbook Pro 2016 or later, Macbook Air 2018 or later, MacPro 2019, Google chromebook pixel, Huawei matebook / matebook pro, Dell, surface Book2 / pro7 / go, HP, Lenovo and Samsung S9, S9 plus, S8, S8 plus, note 9, note 8, Huawei’s new version of mobile phones and other type-C laptops that support alt modes and power transmission.
4. UHD 4K output and multi screen display: the screen can now be mirrored and expanded to provide you with an unprecedented visual experience. You can transfer the screen directly to HDTV, monitor or projector, greatly improving your work efficiency. It supports dual HDMI displays up to 3840×2160@30Hz or 1920×1080@60Hz Use VGA. If you want to know more about the resolution of each connection port, please refer to the product description.
5. PD MAX 100W power supply and ultra-high speed data transmission: the PD port on the hub supports the maximum 100W fast charging of notebook computers. Two USB 3.0 ports support transmission speeds up to 5 Gbps, 10 times faster than USB 2.0. You can easily access files faster in seconds. It is recommended to connect the laptop power cord when connecting external high-power devices (such as flash drives, hard drives, printers, etc.).
Note: For MacBook laptop, can only extend one different monitor.

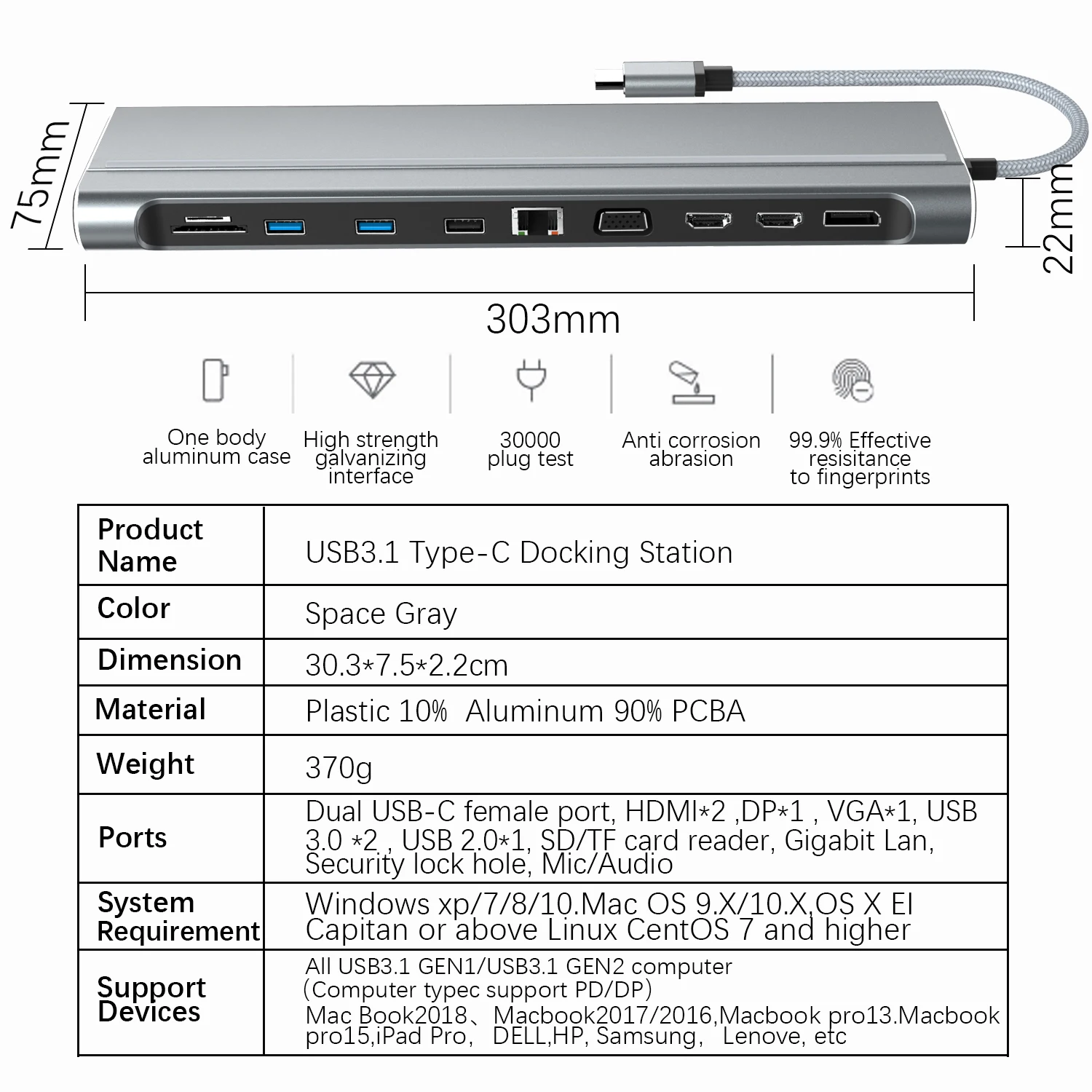

Parameters:
Material: Aluminum Alloy

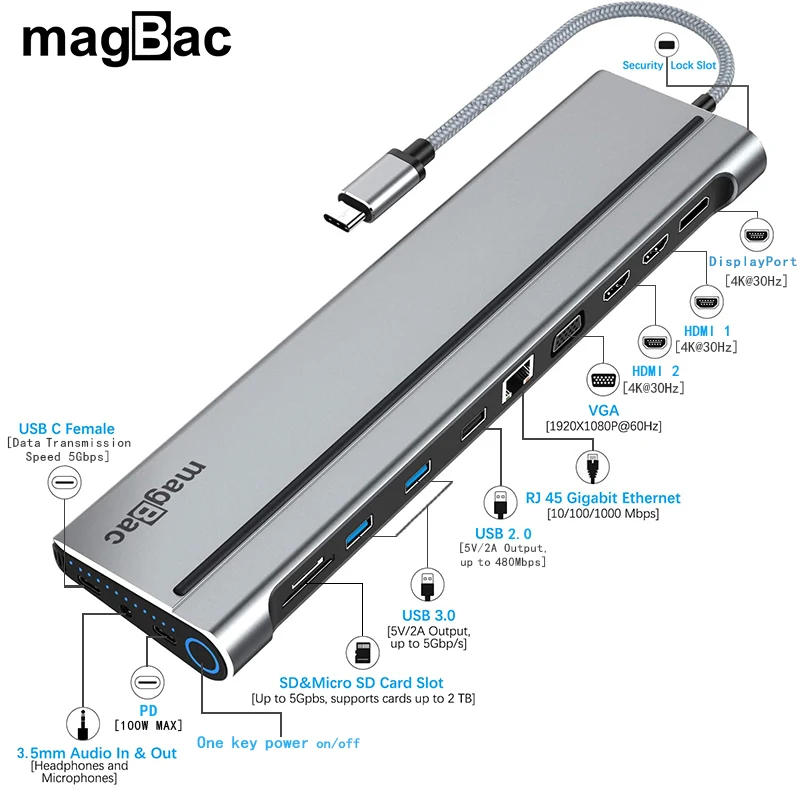

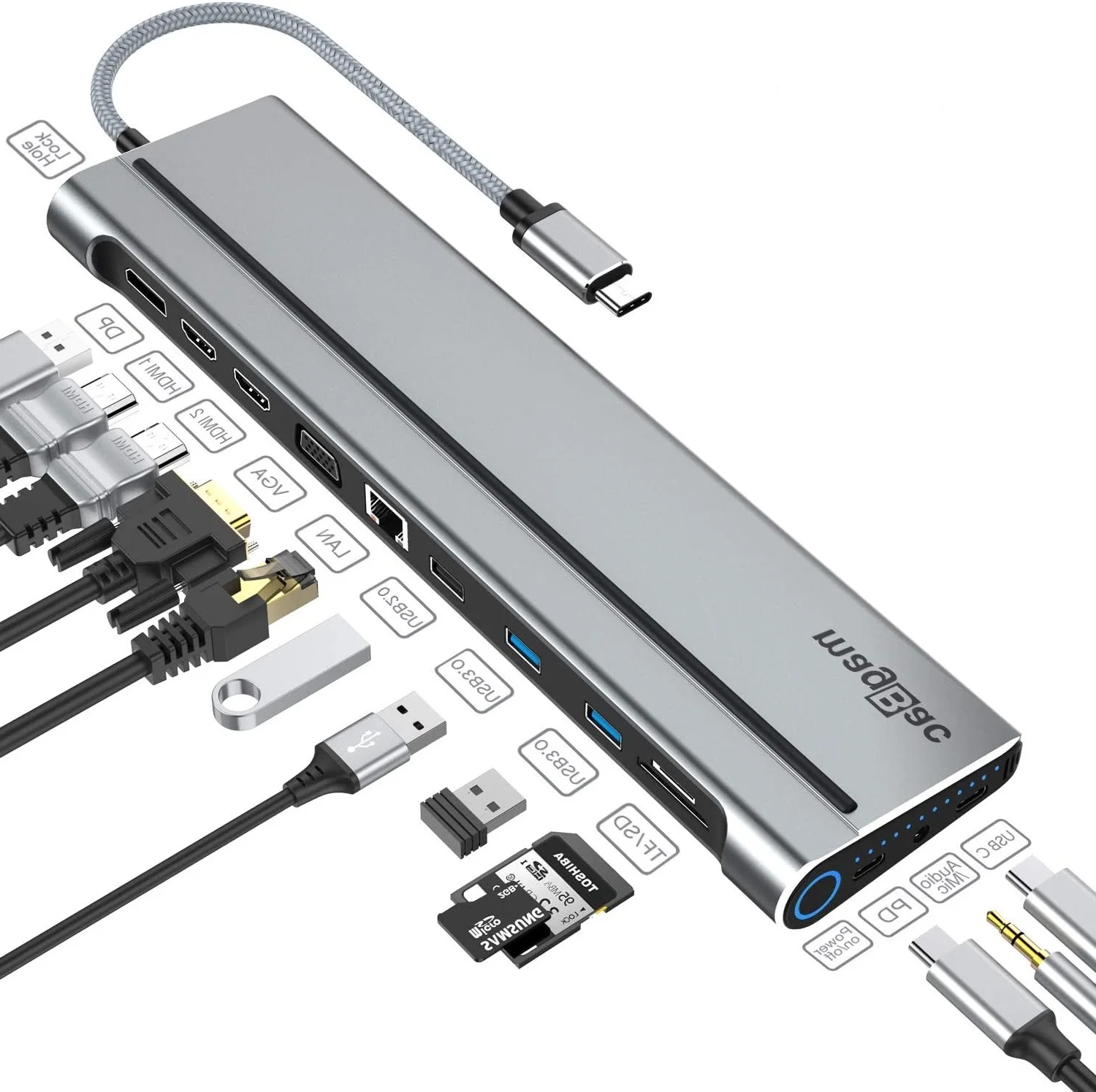

Interface:
2 * USB 3.1 Type-C connector cable(Built-in)
2 * USB 3.0 Type A port 5Gbps
1 * USB 2.0
2 * HDMI output port 4K/30Hz
1 * DP output port 4K/30Hz
1 * VGA output port 1080P/60Hz
1 * Rj45 Gigabit 10/100/1000Mbps
1 * SD card slot
1 * TF card slot
1 * 3.5mm Jack hole for Audio/Mic
1 * PD charge port(it could support 100w adapter)
1 * USB C Data
1 * Power ON/OFF button
1 * Security Lock hole
Length: 20cm
4 Video Output: 2*HDMI+DP+VGA
Power Delivery ： 87W , MAX 100W
USB C Port： For Power Charging and Data Transmission, Speed 5Gbps
Color： Space Gray
Support Mode： Mirror Mode and Extend Mode
Triple Monitors: DP+HDMI2+VGA / HDMI1+HDMI2+VGA, you can hang on 3 Monitor at the same time, For some Windows you can Extend Mode for 3 Monitors
LED Display： It will light up when you plug in the port
Security Lock hole:For Anti-theft
Radiating Hole: Help the computer cool down

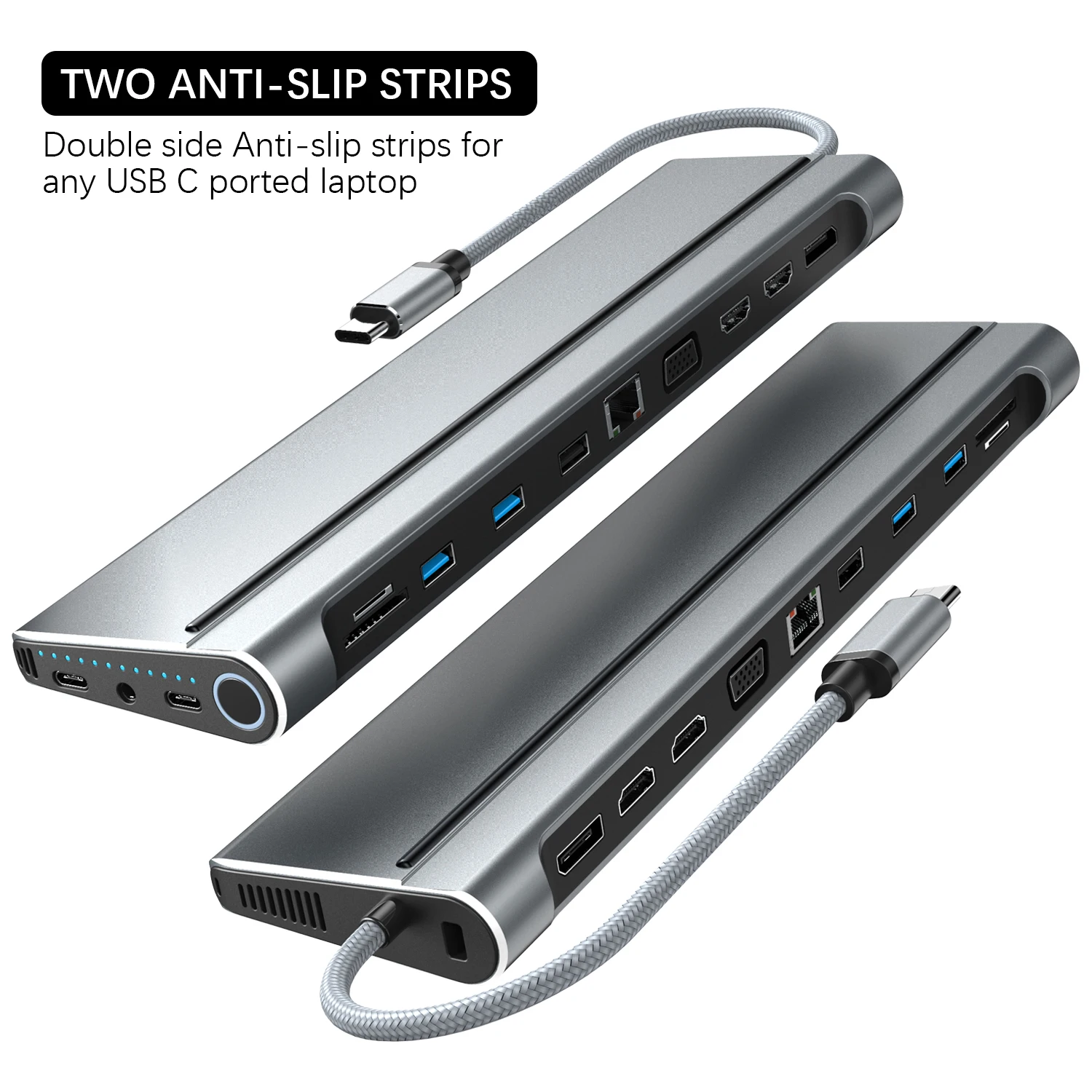

Anti-slip Strip: Double side, For Stabilize the Computer
Compatibility:
Quick User Guide:
1. ONLY compatible with DP Alt Mode (video signal output)devices.
2. ONLY work with video-enabled USB-C devices for any video output.
3. Feel free to find our customer support team with any questions on product & compatibility.
(✔) Compatible laptops lists.
• (✔) MacBook:MacBook Pro (Late 2016 and newer), MacBook (Early 2015 and newer), MacBook Air (Late 2018 and newer)
• (✔) Apple:iPad Pro (2020 / 2018), iMac (Mid 2017 and newer), iMac Pro; Mac Mini (Late 2018 and newer)
• (✔) Microsoft:Microsoft Surface Book 2, Surface Go, Google Chromebook Pixel (2015), Pixelbook; Pixel Slate
• (✔) Dell:Dell Latitude 7373 / 5570 / 5490 / 5400 (2019), XPS 13 / 15
• (✔) Samsung:Samsung Galaxy S20 / S20+ / S20 Ultra / S10e / S10 / S10+ / Note 20 / Note 9, S8 / S8+ / S9 / S9+
• (✔) Phones:HTC 10 / U Ultra / U11 / U11+ / U12+, Asus ZenFone / ROG Phone and more
Dual 4K/30Hz HDMI Ports for HD Working Station
magBac USB C to Dual HDMI Docking Station supports total max 4K/30Hz resolution; There will be three different content displays if connected to a full-featured USB C ported Windows system laptop(2 external 4K display device + host laptop); 2 different content displays for Thunderbolt3 laptop( Same content for the two 4K external devices + Thunderbolt 3 screen).
Instructions:
• Specially Designed for Macbook and other standard Type-C(Full featured/function) enabled device, expand 1 USB C ports into multi-ports. Meet all your needs with one hub, Plug and play to expand your MacBook capabilities, convenient for taking it with you on-the-go.
• [High-Resolution 4K HDMI] HDMI Display-port VGBA USB C Adapter allows you to mirror or expand the display of your MacBook/Other type-c device to TV, monitor or projector with resolution up to 4K UHD (3840 x 2160 @ 30Hz) for single Video output and dual monitor output total 4K/30Hz. .
• [Super data transfer] 3 USB 3. 0 Ports support data transfer at speed of up to 5Gbps and enable you to connect three peripherals simultaneously, including keyboards, mice, hard drive. Backwards compatible with USB 2.0 devices. With SD and TF slots, it is easily accessed to read Micro SD Memory cards of cell Phones and TF cards of cameras at the same time. Support SD Memory cards and TF memory cards of up to 512G. Ideal tool for photographer or designer.

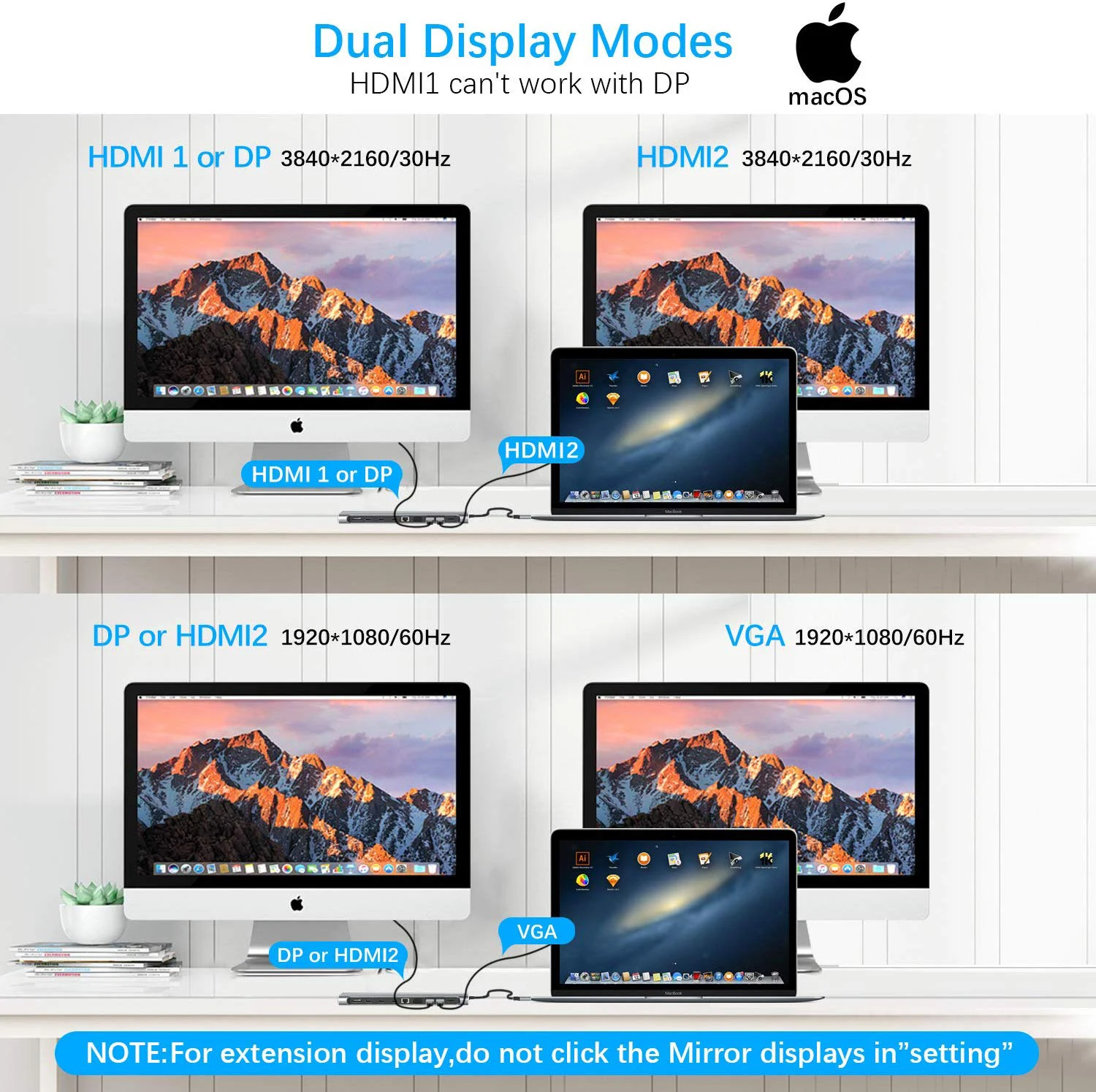

• [Triple and Dual Display] HDMI/DP/VGA ports, any three video ports in three can be used at a time, and output display simultaneously, but DP+HDMI 1 ports can not be used at the same time.
• [Security Lock hole] Built-in Security Lock hole for your laptop & docking station safety, using one standard lock cable to connect the docking station and laptop for anywhere using.
• [Double side Anti-skid Design] An double side Anti-slip design for the laptop standing purpose when you want to relax your wrist. No worry about the slipping of the laptop placed on the docking station. it is universal design for all the laptop models.
Packing list:
P03s:
1 * P03s USB-C docking station
1 * User Manual
1 * Pack box
